How to pass the Load balancer unhealthy host count monitored (AWS) Test

  • Updated

Set up healthy host count alerts in Amazon Cloudwatch or a 3rd party monitoring provider for your application and classic load balancers. Define alerts for at least one of the following metric categories:

  • UnHealthyHostCount
  • HealthyHostCount
  • EnvironmentHealth



Prerequisites



  • AWS Cloudwatch
  • AWS Classic or Application ELB



Procedure



  1. For Classic and Application Load Balancers, We're reading these two metrics:
    • UnHealthyHostCount
    • HealthyHostCount

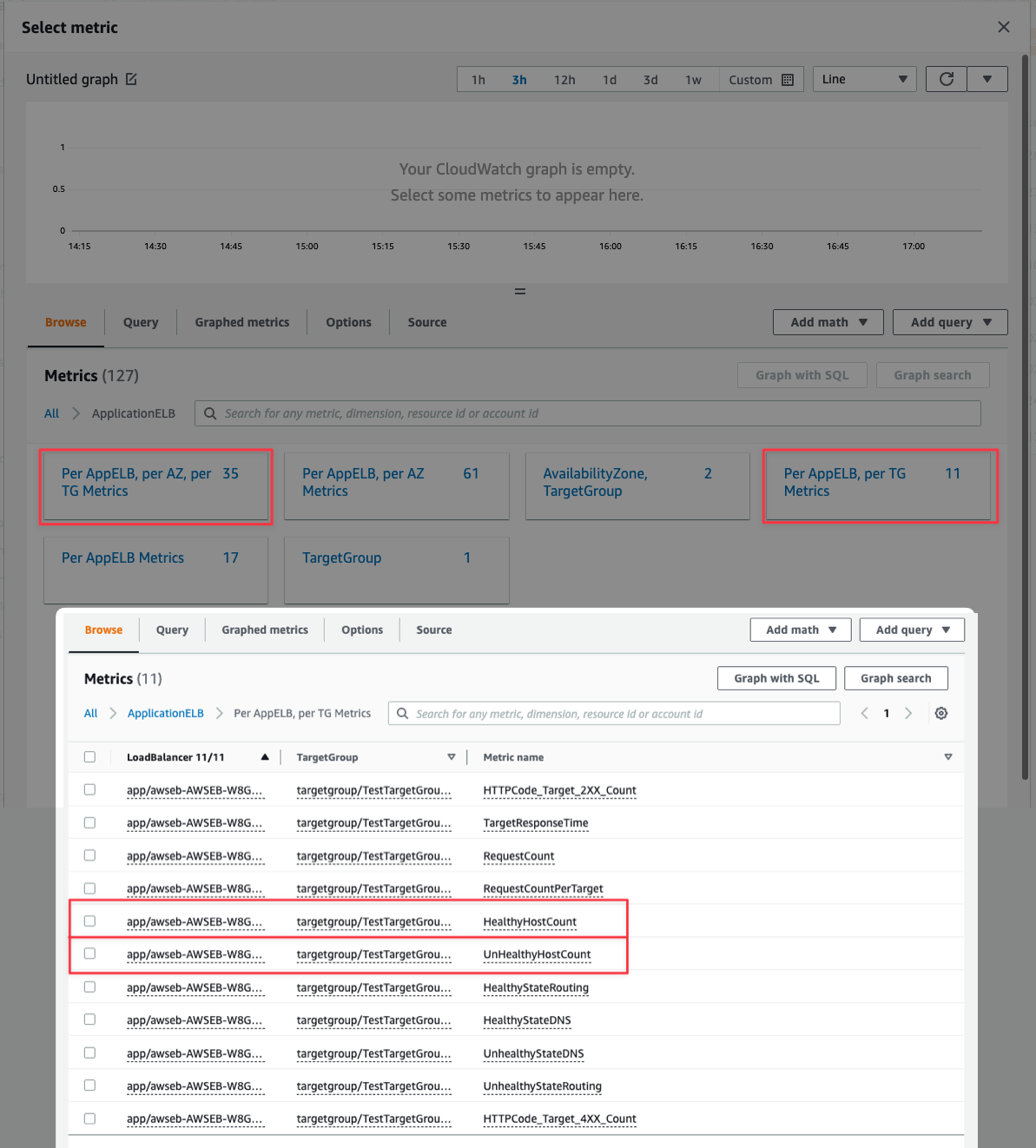

      Select one of the two Metrics, and continue:

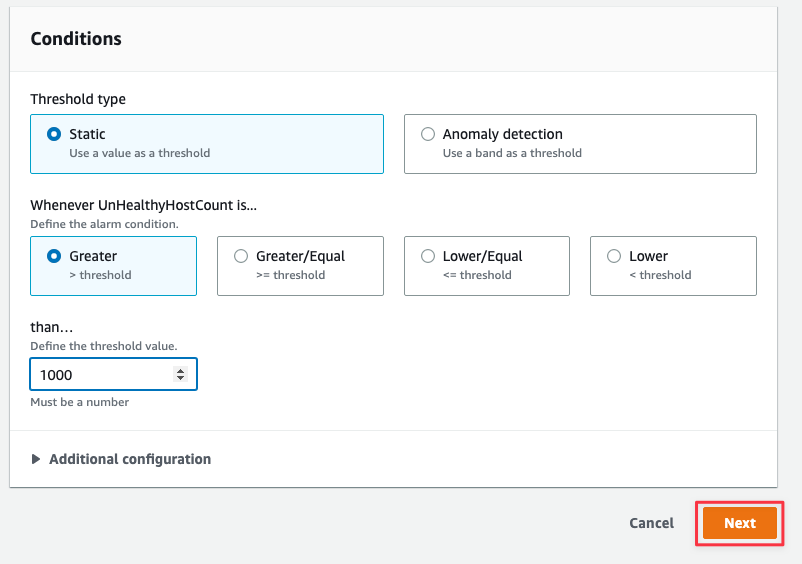

      Next, Configure the Alarm Conditions:

      And finally, Configure the Notification type and any Action you'd like to take:

      The same steps apply for a Classic Load Balancer:

      Once finished, you should then see your new Alarm appear in the All Alarms dashboard!
      Vanta will then pull this Load Balancer in and test to see if it has alarms configured for those metrics.

  2. For ElasticBeanstalk, We look for the following Metric:
    • EnvironmentHealth
      Example:




Common Issues



Vanta cannot read your Queried Metrics for your Alarms:

If you're using a Query to build your alarms, You may need to deactivate monitoring on that specific Load Balancer. You can just upload a screenshot of your current Alarm config for manual evidence.
